Wireless Fire Alarm System (Firesens)

Model code: FRS-BB / FRS-GATEWAY / FRS-B-BOX-R1

Cable-free, flexible fire detection for industrial sites and sites with special requirements.

Request a quote Specifications

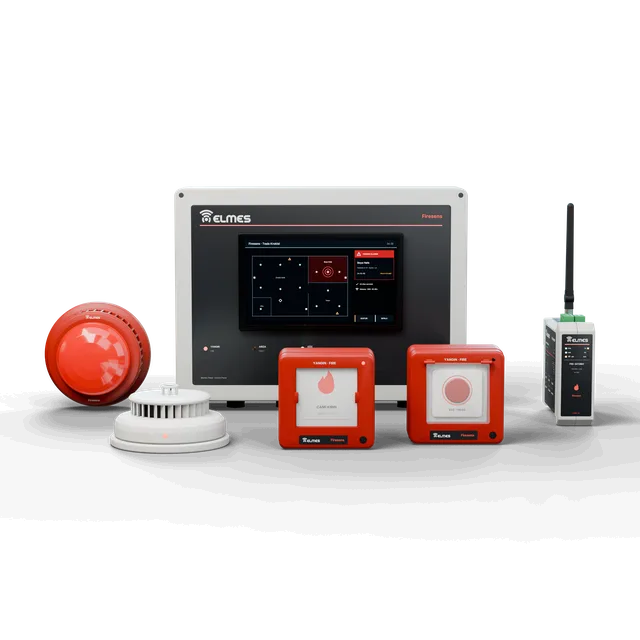

Firesens wireless fire alarm family: control panel with map display, siren, gateway, smoke/heat detector and two call points

Overview

The problem in the field. In operating factories, heritage buildings, large warehouses and open sites, running a wired fire detection loop halts production, damages the structure and is expensive. Standard conventional/addressable panels raise the alarm, but site-specific actions (lock a door, shut off ventilation, trigger a specific extinguisher) require an extra PLC and more cabling. In solvent, paint and dusty environments, a single type of detector produces false alarms or reacts too late.

The solution. Firesens connects battery-powered or 24 V wireless end devices (smoke/heat sensors, buttons, sirens, relay output units) to the gateway and panel over LoRa 433 MHz. The panel, PC application and map HMI show every device with its location, battery, temperature and signal strength; on alarm, siren, door and extinguisher outputs are triggered according to the scenario. Thanks to two-way communication, the panel sends commands and each device acknowledges them. Installation is carried out in the running plant without stopping production.

For sites with special requirements. Firesens is not a replacement for a legally mandated fire detection system; it is positioned as an additional, special-purpose protection layer for industrial sites and sites with special requirements, and is evaluated project by project. The smoke/heat sensor is EN 54-7 self-declared; EN 54-25 (wireless components) certification is planned. The roadmap covers early warning based on threshold and trend analysis across several sensor types (optical smoke, temperature, rate-of-rise, gas), BMS/SCADA integration over Modbus TCP, and a new version of mobile notifications.

Firesens break-glass call point, flashing siren, control panel and PSU on a factory wall under a mezzanine; wireless detectors overhead
In use
Firesens components: FRS-PS power supply, control panel, FRS-GATEWAY, relay unit, detector, call points and siren
Product family

Features

  • Linked door control: locks/unlocks doors and monitors door status according to the alarm scenario (relay unit + magnetic contact).
  • Extinguisher triggering: triggers the site's own extinguishing unit (gas, foam, sprinkler pre-control) based on sensor data, with double confirmation and a delay.

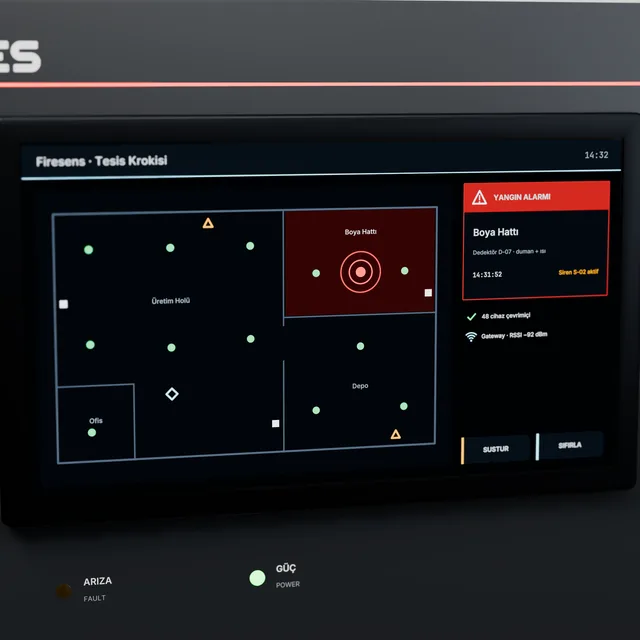

  • Map-based HMI: device status on the site plan on a 7-inch display; the same view in the PC application.
  • Device health reports: battery, temperature and RSSI from every device.
  • Two-way communication with acknowledgment: each device acknowledges panel commands (ACK).
  • Dry-contact integration: the relay unit connects to a zone input of an existing panel.
  • Multilingual panel: Turkish / English interface.
  • TargetMulti-sensor fusion and early warning: cross-checking data from different sensor types, trend analysis (rate of temperature rise, smoke density), a pre-alarm level.
  • TargetExtinguishing control logic: double-confirmation and delay logic modeled on the EN 12094-1 approach; certification is not in scope.
  • TargetBMS/SCADA integration: Modbus TCP.
  • TargetMobile app / notifications: a new version of alarm and fault notifications.
  • TargetOptional modules: gas sensor node, outdoor siren, 4G backup link, cloud monitoring (Telemetry & Process Intelligence), portable notification unit (WR-001 LoRa Wireless Alarm / Call Remote), repeater.

System components

System components
ComponentTypeDescriptionStatusRequest a quote
—Smoke / heat sensorOptical smoke and heat detection; battery-powered; battery, temperature and RSSI reporting; EN 54-7 self-declaredIn the fieldRequest a quote: Smoke / heat sensor
—Standard call pointWireless manual fire alarm buttonIn the fieldRequest a quote: Standard call point
—Break-glass call pointWireless call point activated by breaking the glassIn the fieldRequest a quote: Break-glass call point
—SirenWireless siren; zone-based triggering according to the alarm scenarioIn the fieldRequest a quote: Siren
—PanelCentral panel; 7-inch map HMI, Turkish / English interface; PC applicationIn the fieldRequest a quote: Panel
FRS-GATEWAYGatewayConnects end devices to the panel over LoRa 433 MHzIn the fieldRequest a quote: FRS-GATEWAY
FRS-PSPower supply24 VDC with battery backup for the panel and sirensIn the fieldRequest a quote: FRS-PS
—Relay output unitDoor, ventilation and extinguisher control; dry contact to an existing panelIn the fieldRequest a quote: Relay output unit
—TargetGas sensor nodeGas detection for multi-sensor fusionPlannedRequest a quote: Gas sensor node
—TargetOutdoor sirenIP54 outdoor variantPlannedRequest a quote: Outdoor siren
—TargetRepeaterRange extension with an extra hop on large sitesPlannedRequest a quote: Repeater

Specifications

Values marked “Target” are design targets, next-generation values or chip-vendor data; they are updated as measurement and certification are completed.

Current system
RadioLoRa 433 MHz; two-way, command–acknowledge
End-device powerBattery or 24 VDC
Panel / siren supply24 VDC + backup battery (FRS-PS)
Device monitoringBattery, temperature and RSSI from every device
Central interface7-inch map HMI and PC application; Turkish / English
IntegrationDry contact via the relay unit
Radio (new series)
Frequency band433.05–434.79 MHz, 8 channels; 868 MHz as an optionTarget
Output power+22 dBm; within ETSI duty-cycle limitsTarget
Receiver sensitivity−129 dBm @ SF11/BW125 (chip datasheet)Target
ModulationLoRa SF9–SF11Target
Data rate0.5–1.8 kbps depending on SFTarget
Antennau.FL or internal PCB antenna on sensors; SMA on the gatewayTarget
Range
Open field≥ 2000 m (SF11, 2 m height)Target
Indoor / industrial≥ 300 m; extendable with repeatersTarget
Communication & security
EncryptionAES-128-CCMTarget
Addressing16-bit network ID + 16-bit address + device UIDTarget
PairingAt the factory and in the field from the panelTarget
Systems on the same site≥ 8 networks (channel × network ID)Target
Performance & fail-safe
Alarm transmission delay≤ 2 s (end device → panel)Target
Heartbeat report interval1–15 min, adjustableTarget
Missing-device detection3 report intervalsTarget
WatchdogIndependent hardware watchdog (IWDG)Target
Measurement
Detection principleOptical + thermal + rate-of-rise; gas nodeTarget
Sensitivity settingThreshold profiles set from the panelTarget
False-alarm preventionDual-sensor confirmation, delay windowTarget
Power
End-device batteryLi-SOCl2 / 2 × AA; sleep < 10 µATarget
Battery life≥ 3 years @ 15 min report interval (calculated + measured)Target
Gateway supply9–36 VDC / PoETarget
Inputs / outputs
Output typeRF + 8-relay output unit (EC-DIO8)Target
Relay / input unitEC-DIO8: 8 digital inputs / 8 relays, 5 ATarget
Panel interfacesEthernet, USB, 4G, Modbus TCPTarget
Mechanical & environmental
Sensor ingress protectionIP33Target
Call point ingress protectionIP44Target
Siren ingress protectionIP54 (outdoor variant)Target
PanelDIN-rail cabinet + 7-inch HMITarget
Operating temperature−10…+55 °CTarget
HumidityUp to 95 %, non-condensingTarget
Warranty & service
Warranty2 years
Manufacturing and serviceAnkara

Applications

  • Paint, solvent and chemical plants
  • Wood and textile production
  • Logistics warehouses
  • Heritage buildings and museums
  • Hospital, dormitory and hotel annexes
  • Energy and infrastructure sites
  • Temporary and construction-site installations

Positioning. Firesens does not replace a legally mandated fire detection system; it is evaluated project by project as an additional, special-purpose protection layer. It can be connected to an existing wired panel through a dry contact on the relay unit.

Ex zones. Firesens is not ATEX/Ex rated. In solvent and paint facilities, Ex zone assessment is the customer's responsibility.

Installation and service. Battery replacement and system expansion are carried out by Elmes or an authorized installer; manufacturing and service are based in Ankara.

Compliance & documentation

The smoke/heat sensor carries a manufacturer's self-declaration for EN 54-7; there is no accredited test report or EN 54-25 certificate yet. Firesens is offered as an additional, special-purpose protection layer, not as a replacement for legally mandated fire detection. EN 54-25 requirements (link supervision, backup channel, battery monitoring) are being built into the new series design.

  • EN 54-7 — optical smoke detector
    Manufacturer's self-declaration; accredited testing is planned
    Self-declared
  • EN 54-25 — components using radio links
    Target
  • EN 54-5 (heat detector), EN 54-3 (sounder), EN 54-11 (call point), EN 54-2/-4 (panel / power supply)
    In stages
    Target
  • CE – RED 2014/53/EU (EN 300 220-2, EN 301 489-1/-3)
    Starting at module level
    Target
  • LVD / EN 62368-1 — panel and power supply
    Target
  • RoHS declaration
    Target
  • CE declaration of conformity
    Target
  • ATEX / Ex
    Ex zone assessment in solvent/paint facilities is the customer's responsibility
    Out of scope

References

Some of the organizations using this product family.

  • Kalecik Devlet Hastanesi
  • Mitaş

Frequently asked questions

Is it a certified fire alarm system?

The smoke/heat sensor is EN 54-7 self-declared; there is no EN 54-25 (wireless components) certificate yet, and it is planned. Firesens is positioned as an additional, special-purpose protection layer rather than a legally mandated fire detection system, and is evaluated project by project.

Will it interfere with another system in the same plant or a neighboring site?

Every network has its own ID; packets with a different ID are ignored. The new series targets at least 8 independent networks through channel and network-ID combinations.

What happens when an end device's battery runs low?

The device reports a low-battery flag and the panel raises a warning; the device keeps detecting. If its reports stop, the panel raises a “missing device” fault.

Can it be integrated with an existing wired panel?

Yes: the relay unit connects to a zone input of the existing panel through a dry contact. BMS/SCADA integration over Modbus TCP is planned.

How can the range be extended?

Mount the gateway antenna high and outdoors, and use more than one gateway on large sites. An extra hop through repeaters is planned.

How are doors or extinguishers controlled?

The relay output unit is assigned to a scenario; once the alarm is confirmed, the panel sends the command and the unit acknowledges it.

Are mobile notifications and a site map available?

A map-based HMI is available (7-inch display and PC application). A new version of mobile notifications is planned.

Can it be used in ATEX/Ex zones?

No, Firesens is not ATEX/Ex rated. In solvent and paint facilities, Ex zone assessment is the customer's responsibility.

What about warranty and service?

2-year warranty; manufacturing and service in Ankara. Battery replacement and expansion are carried out by Elmes or an authorized installer.
